Ingenieur-Mechanicien pour les Globes et Spheres”

By FORTIN, [Jean] and BUY DE MORNAS, M. [Claude], 1768
£35,000
£28,000

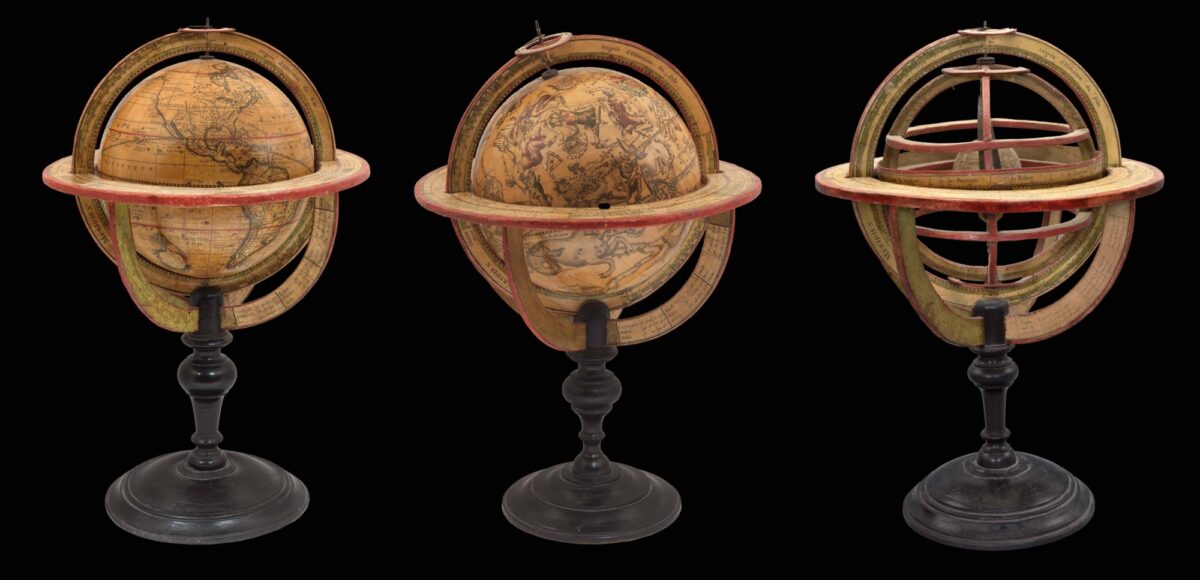

A set of two globes and one armillary sphere Globe terrestre sur le quel Les Principaux Points sont placez sur les dernieres Observations de Mrs de l’Academie Royale des Sciences Par M. Buy de Mornas Geographe du Roi et des Enfants de France, [and] Globe celeste, [and armillary].

Globes
  • Author: FORTIN, [Jean] and BUY DE MORNAS, M. [Claude]
  • Publication place: Paris
  • Publisher: Chez le Sr. Fortin, Ingenieur, Mecanicien du Roy pour les Globes et Spheres, rue de la Harpe
  • Publication date: 1768 [celestial globe dated 1770, armillary dated 1773].
  • Physical description: A pair of terrestrial and celestial globes, each with 12 hand-coloured engraved paper gores over papier mâché and plaster sphere, varnished, paste-board meridian ring, wooden horizon ring, raised by four quadrant supports, mounted on an ebonized turned wood table stand. Together with an armillary sphere, containing globe with 12 hand-coloured engraved gores, over a papier mâché and plaster sphere, varnished wood, raised on four quadrant supports, with ebonised turned wood table stand.
  • Dimensions: 220mm (8.75 inches).
  • Inventory reference: 15693

Notes

Biography
Jean Fortin (1750–1831) was a scientific instrument-maker born in Picardy, France. Chiefly remembered for designing a barometer that ensured more accurate readings, he also produced celestial atlases, scales and was commissioned by the French royal family to make globes. He made terrestrial and celestial globes of 320 and 220mm (12 and 8.75 inches) diameter, as well as a terrestrial globe of 55mm (2.25 inches) to go into his armillary spheres.

Fortin operated in Paris, with a shop in the Rue de la Harpe, where he referred to himself as Ingenieur-Mecanicien pour les Globes et Spheres”. He is also known for publishing the new celestial atlas of John Flamsteed (1646–1719) in 1762, which was highly influential as a source for celestial cartography throughout the rest of the century. His business was continued by his son Augustin, grandson Michel and great-grandson Augustin.

Geography
The prime meridian, which runs through the Canary Islands at Ferro, the equator, and the ecliptic are all graduated and labelled. The ecliptic includes the signs of the zodiac. Australia and New Zealand are drawn according to the discoveries of Abel Tasman; a dotted line marks a hypothetical northeast, east, and south coast of Australia. There are no tracks of voyages shown, but the lands seen by Quiros and David are marked. The two demi-meridian rings mark the latitude and longitude of the major cities of the world.

North America extends almost to the north pole, and is apparently attached to Asia in the west and Greenland in the east. However, California is shown as a peninsula.

Astronomy
The equator is graduated and labelled Cercle de L’Equateur” and Cercle Equinoctial”. The ecliptic is graduated; it is labelled Ligne Eclipt” and la Zodiaque” and provided with the symbols of the signs of the zodiac. There are labels for the Artique” along the north polar circle the Tropique de Capricorn”, the Tropique de Cander”, the Pol. d’eclipt. Australle”, the Colure des Aequinoxe” and the Colure des Solstique”. There is a magnitude table which is labelled Gr. et Figure des Etoilles”. The 48 Ptolemaic constellations are shown as well as the non-Ptolemaic constellations Antinous, La Chevelure de Berenice, La Croix, and La Colombe. The 12 southern constellations of Plancius are depicted.

Armillary
The Ptolemaic armillary sphere shows the cosmos with the earth at its centre. The complex device is made of moving circles: a meridian surmounted by an hour circle with metal pointer and an internal ring structure of polar circles, tropics and equator, joined by an equinoctial and a solstitial colure and surrounded by a planar zodiac band. These elements surround a rotating terrestrial globe with 12 gores and revolving sun and moon of flat paste-board discs, horizon band with calendar and zodiac. The four quadrant supporting the horizon ring give the latitude and longitude of major cities throughout the world.
